In some cases you want to trigger an external program from a SAP system. In this part 1 I explain how to build a RFC Server with NCo 3.0. I had several problems when I started with this topic so I decided to write a short example. If someone want the Visual Studio project files, please contact me.
So let's go.
This Post describes how to build a simple RFC Server using SAP NCo 3.0 and the app.config. Part 2 will be describe how to build a RFC Server with RFC Parameter. As example program I use STFC_CONNECTION. It is a good example, because it contains importing and exporting parameters.
First you have to download and install NCo 3.0 (OSS login required). Afterwards you have to start a new project in Visual Studio.
Setting up the Visual Studio Project:

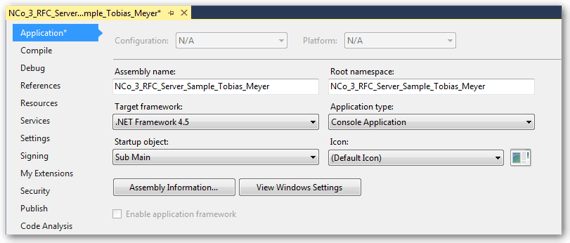

In the properties of the project you have to use a new console application. As target framework I use .Net Framework 4.5.

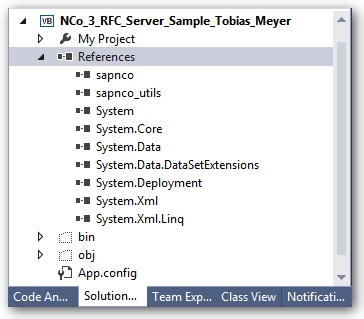

Next you have to add references to the SAP .Net Connector. There are two DLLs (sapnco.dll and sapnco_utils.dll). Since NCo 3.0 SAP offers a help manual which describes all commands.
Define the SAP Connections
There are many methods you can use to define a SAP host. For a quick and simple solution you can use the app.config to define your SAP connection.
For basic RFC server configuration, there are two sections that are used. One section are the ClientSettings, the other the ServerSettings. A RFC server configuration is linked to a RFC repository by using the REPOSITORY_DESTINATION attribute. To be able to access function metadata, this attribute must match the name of a destination in the client settings.
All RFC servers communicate with a SAP system through a service called the SAP gateway service. The server settings defines how the application connects to the gateway. In the server section the NAME field identifies this entry to your RFC Connection in a SAP system. The SAP .Net Connector uses the values in the GWHOST, GWSERV and PROGRAM_ID fields to register your program on the SAP Gateway. The PROGRAM_ID must match the Registered Server Program of your RFC Destination.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 |
<? xml version="1.0" encoding="utf-8" ?> <configuration> <configSections> <sectionGroup name="SAP.Middleware.Connector"> <sectionGroup name="ServerSettings"> <section name="ServerConfiguration" type="SAP.Middleware.Connector.RfcServerConfiguration, sapnco"/> </sectionGroup> <sectionGroup name="ClientSettings"> <section name="DestinationConfiguration" type="SAP.Middleware.Connector.RfcDestinationConfiguration, sapnco"/> </sectionGroup> </sectionGroup> </configSections> <SAP.Middleware.Connector> <ServerSettings> <ServerConfiguration> <servers> <add NAME="DINOZZO" GWHOST="xxx.xxx.xxx.xxx" GWSERV="SAPGW00" PROGRAM_ID="STFC_CONNECTION" REPOSITORY_DESTINATION="ABC" REG_COUNT="1"/> </servers> </ServerConfiguration> </ServerSettings> <ClientSettings> <DestinationConfiguration> <destinations> <add NAME="ABC" USER="user" PASSWD="password" CLIENT="client" LANG="EN" ASHOST="xxx.xxx.xxx.xxx" SYSNR="00" /> </destinations> </DestinationConfiguration> </ClientSettings> </SAP.Middleware.Connector> <startup> <supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.5" /> </startup> </configuration> |
SAP Function module:
SAP transaction se37 can be used to find out the parameters for the STFC_CONNECTION. In this example, you receive a parameter REQUTEXT, which will be returned to the caller in ECHOTEXT. It also return a text string to the caller in field RESPTEXT.

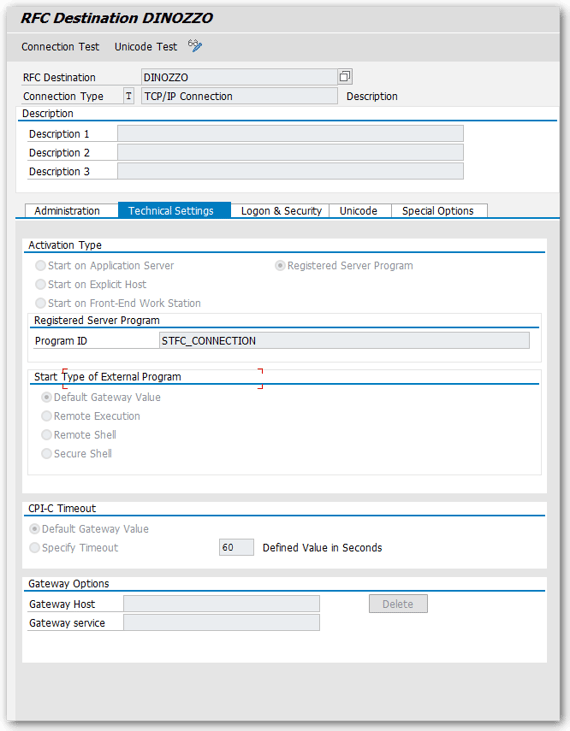

Transaction sm59 is used to configure the RFC Destination. The name of the RFC Destination.
Coding:
First you have to create a class that exposes a method that can be called via a SAP RFC Call. In the example that class is named ServerFunction and it contains one method which will supply the STFC_CONNECTION functionality.
Add a new class in the Visual Studio
Import the NCo functions

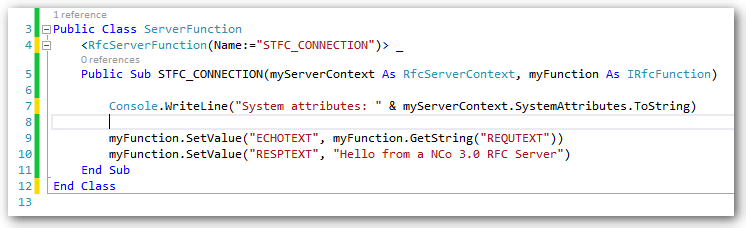

Create a method, similar to this one
Now you have to implement the coding for Main()
First Import the NCo functions

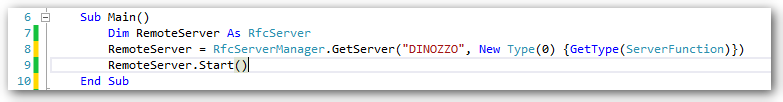

Afterwards you have to create a similar coding
RfcServerManager.GetServer("DINOZZO", New Type(0) {GetType(ServerFunction)})
DINOZZO references to the RFC Destination name in transaction sm59 and in the app.config.
ServerFunction references to the class above.
The RFC Server will be started by following code: RemoteServer.Start
In SAP transaction SMGW >> Goto >> Logged on Clients you can now see your program running on the application gateway.

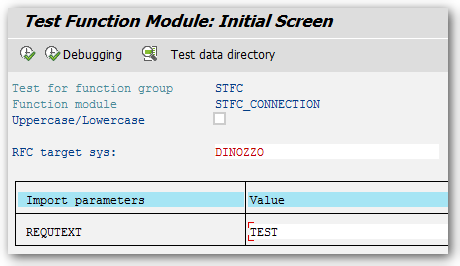

Now you can use the test function screen in transaction se37 to test STFC_CONNECTION. The RFC Target System is set to the name of the RFC destination (sm59)

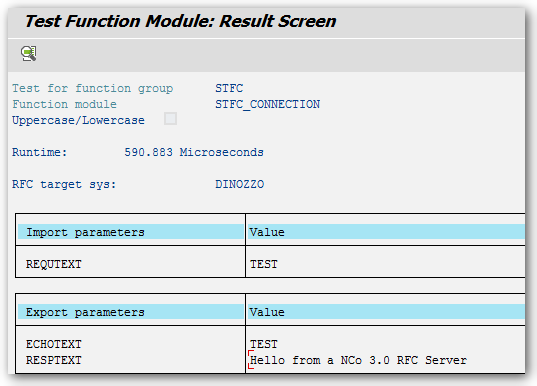

Click Execute (F8)

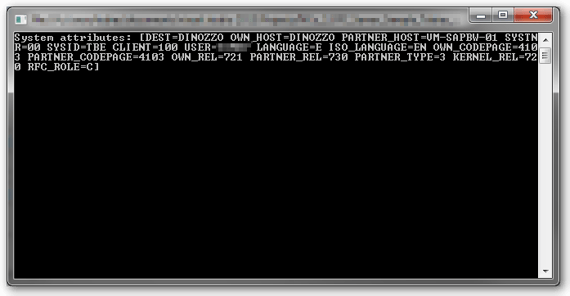

The console will also display some information.
Part 2 will be describe how to build a RFC Server with a custom RFC repository and how to be flexible with RFC config parameters.
